A Network-on-Chip for Configurable Monitors

Overview

This work is motivated by the increasing importance of on-chip monitoring in modern processors. As silicon processes scale, on-chip system will require  multiple monitors that performs assessment of performance, security, and physical characteristics that change during the operation of a device. The parameters that can be monitored include temperature, voltage, processor activity and power supply fluctuation, etc. It is expected that future on-chip systems will generally include numerous embedded monitors. These monitors speed up the computation of environmental monitoring compared to software execution. They provide quickly system performance evaluation without interfering with the primary operation of the system. They provide tradeoffs in terms of throughput, area, latency, reliability, power and energy in order to meet real time constraints. Our monitoring-based approach requires the integration of multiple monitors to form a complete chip subsystem devoted to monitoring.

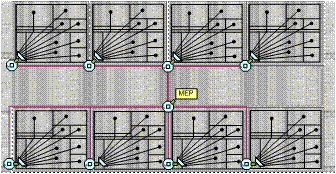

A main aspect of the work involves the architectural definition of configurable monitors, lightweight components which can collect and potentially evaluate data from each target core or sensor. A second key feature of our approach is a low-latency monitor network-on-chip which interconnects the on-chip monitors and transmit monitor packet with low latency. Data collected from the multiple monitors via the network are collated by a programmable monitor executive processor (MEP). In response to abnormal behavior, the MEP can issue commands to control the operation of the on-chip system. For example, it can override the power management, disable I/O operations, or throttle voltage/frequency. The integration of the monitors and associated network requires system level validation via architectural and circuit-level simulation. A communication protocol is developed to allow for priority-driven data transfer of monitor data to the MEP.

This work is funded by Semiconductor Research Corporation under Task 1595.001.
