Problem Statement

Battleship is a classic game that has evolved from pencil and paper game into a fully fledged board game

The current iteration requires physical pieces of ships and pegs to be able to play

Requires precise movement that otherwise may be impossible for those withpoor motor skills

System Specifications

4 boards (2 for each player) housed in a double sided suitcase

Each board contains 8x8 alphanumeric grid with 64 LEDs (256 total)

Each board (64 LEDs) consumes ~9W of power with a 5V power supply and 1.8A of current at maximum brightness

A microphone and speaker for voice commands

Controlled using a Raspberry Pi (real-time speech recognition)

The Team

The ones who run this project

Aleck

Aleck Chen

EE

Hardware Engineer II

James

James Gnall

EE

Software Engineer I

Varak

Varak Mouradian

EE

Hardware Engineer I - PCB Design

Vincent

Vincent Nguyen

CSE

Software Engineer II

Polizzi

Professor Eric Polizzi

Advisor

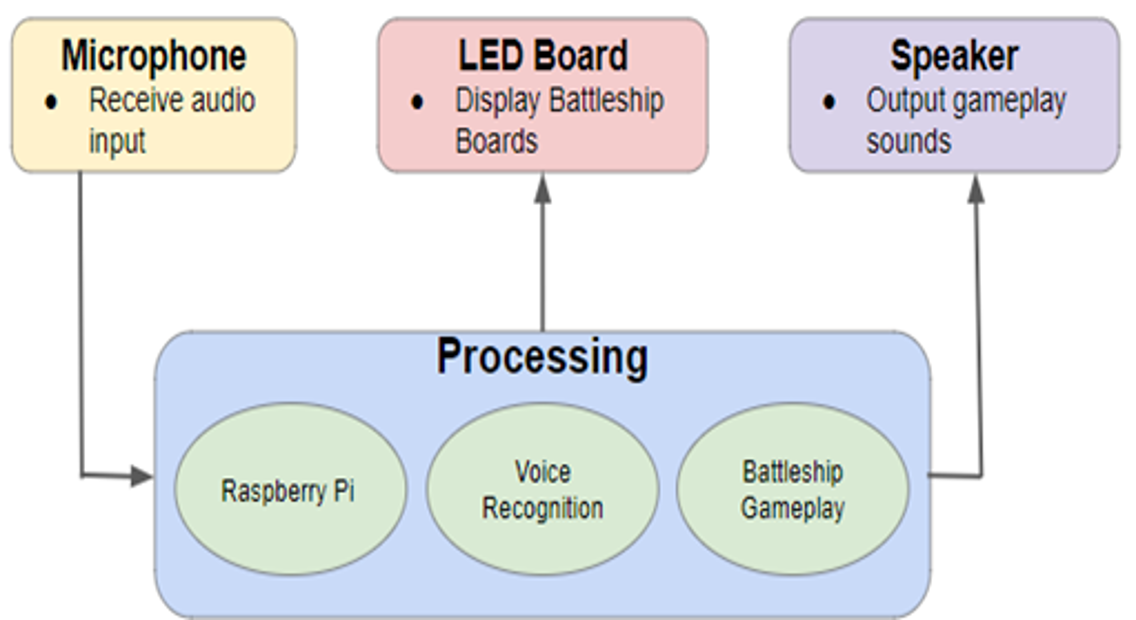

Block Diagram
