Reeds Bridge Road Bridge Tension Test Results Summary
View the methods for these tension tests here
Download raw data results in Excel format
Download raw data results in MatLab format

A total of five tension coupons from the Reeds Bridge Road Bridge were fabricated and tested at UMass Amherst. Information on each specimen is available below.

Divider

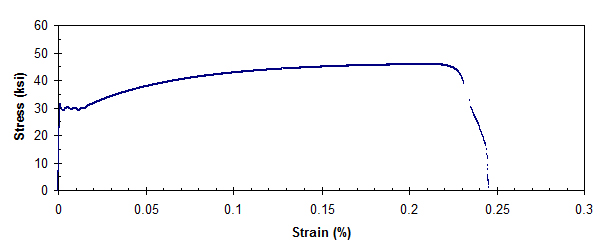

Reeds Bridge Road Bridge tension coupon #1
Bondsville Coupon 1
Properties
Modulus of Elasticity: 26634 ksi
Yield Strength: 32.0 ksi
Ultimate Strength: 45.79 ksi
Percent Elongation: 23.0%

Notes
Failure Picture
Bondsville Coupon 3 Failure
Divider

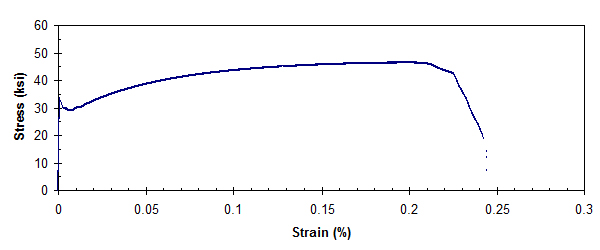

Reeds Bridge Road Bridge tension coupon #2
Bondsville Coupon 1
Properties
Modulus of Elasticity: 29628 ksi
Yield Strength: 34.0 ksi
Ultimate Strength: 46.41 ksi
Percent Elongation: 22.5%

Notes
Failure Picture
Bondsville Coupon 3 Failure
Divider

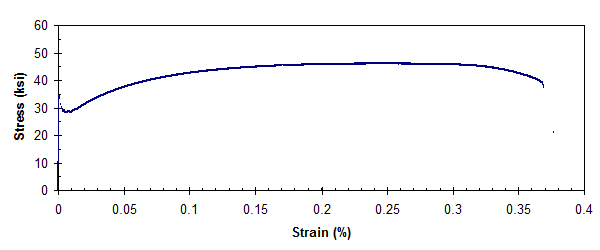

Reeds Bridge Road Bridge tension coupon #3
Bondsville Coupon 1
Properties
Modulus of Elasticity: 27103 ksi
Yield Strength: 34.5 ksi
Ultimate Strength: 46.06 ksi
Percent Elongation: 37.0%

Notes
Failure Picture
Bondsville Coupon 3 Failure
Divider

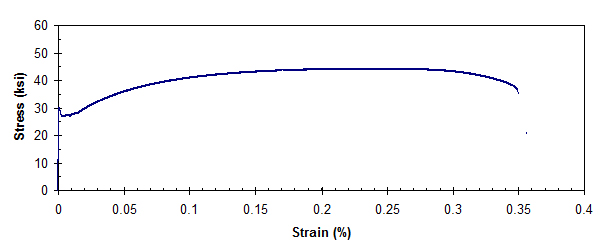

Reeds Bridge Road Bridge tension coupon #4
Bondsville Coupon 1
Properties
Modulus of Elasticity: 28244 ksi
Yield Strength: 30.0 ksi
Ultimate Strength: 44.17 ksi
Percent Elongation: 35.0%

Notes
Failure Picture
Bondsville Coupon 3 Failure
Divider

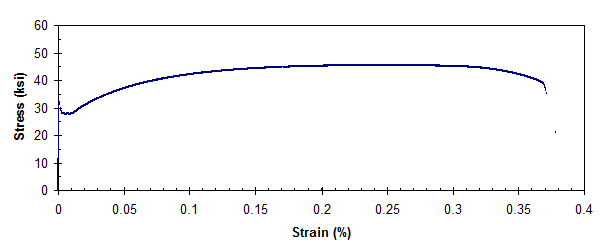

Reeds Bridge Road Bridge tension coupon #5
Bondsville Coupon 1
Properties
Modulus of Elasticity: 27807 ksi
Yield Strength: 32.0 ksi
Ultimate Strength: 45.48 ksi
Percent Elongation: 37.0%

Notes
Failure Picture
Bondsville Coupon 3 Failure
