Lower Bridge in Bondsville Tension Test Results Summary
View the methods for these tension tests here
Download raw data results in Excel format
Download raw data results in MatLab format

A total of eight tension coupons from the Lower Bridge in Bondsville were fabricated and tested at UMass Amherst. Information on each specimen is available below.

Divider

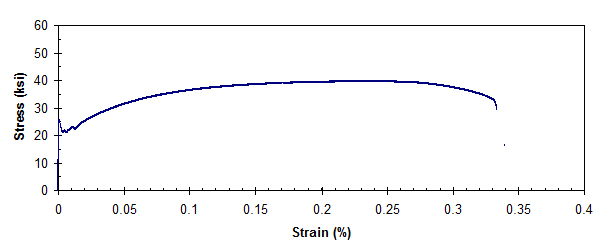

Lower Bridge in Bondsville tension coupon #1
Bondsville Coupon 1
Properties
Modulus of Elasticity: 28752 ksi
Yield Strength: 25.0 ksi
Ultimate Strength: 39.58 ksi
Percent Elongation: 33.5%

Notes
Failure Picture
Failure Image Unavailable
Divider

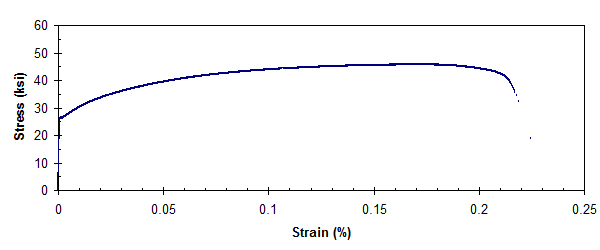

Lower Bridge in Bondsville tension coupon #2
Bondsville Coupon 2
Properties
Modulus of Elasticity: 26947 ksi
Yield Strength: 27.0 ksi
Ultimate Strength: 45.73 ksi
Percent Elongation: 21.5%

Notes
Failure Picture
Failure Image Unavailable
Divider

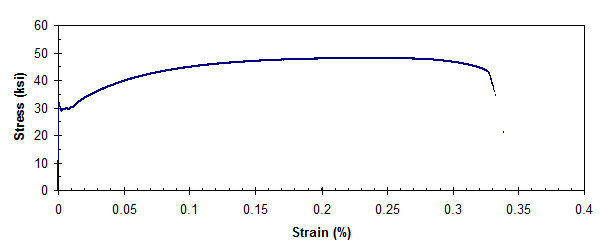

Lower Bridge in Bondsville tension coupon #3
Bondsville Coupon 3
Properties
Modulus of Elasticity: 27603 ksi
Yield Strength: 32.0 ksi
Ultimate Strength: 48.05 ksi
Percent Elongation: 33.0%

Notes
Failure Picture
Failure Image Unavailable
Divider

Lower Bridge in Bondsville tension coupon #4
Bondsville Coupon 4
Properties
Modulus of Elasticity: 28755 ksi
Yield Strength: 34.0 ksi
Ultimate Strength: 48.50 ksi
Percent Elongation: 37.0%

Notes
Failure Picture
Failure Image Unavailable
Divider

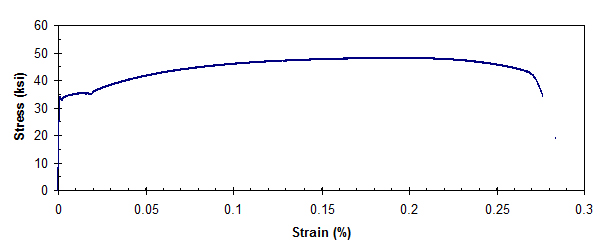

Lower Bridge in Bondsville tension coupon #5
Bondsville Coupon 5
Properties
Modulus of Elasticity: 29701 ksi
Yield Strength: 34.0 ksi
Ultimate Strength: 48.50 ksi
Percent Elongation: 27.5%

Notes
Failure Picture
Failure Image Unavailable
Divider

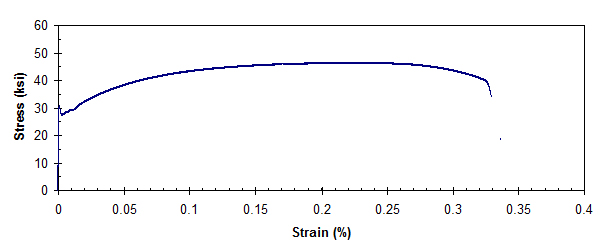

Lower Bridge in Bondsville tension coupon #6
Bondsville Coupon 6
Properties
Modulus of Elasticity: 24779 ksi
Yield Strength: 30.5 ksi
Ultimate Strength: 46.22 ksi
Percent Elongation: 33.0%

Notes
Failure Picture
Failure Image Unavailable
Divider

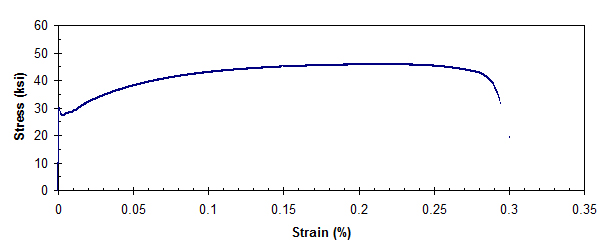

Lower Bridge in Bondsville tension coupon #7
Bondsville Coupon 7
Properties
Modulus of Elasticity: 30081 ksi
Yield Strength: 29.0 ksi
Ultimate Strength: 45.77 ksi
Percent Elongation: 29.0%

Notes
Failure Picture
Failure Image Unavailable
Divider

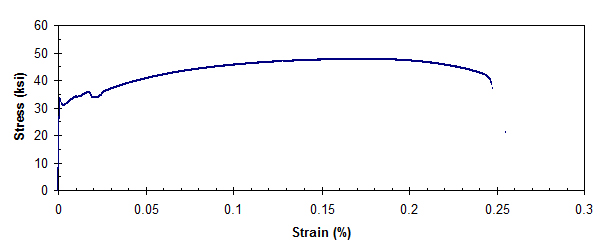

Lower Bridge in Bondsville tension coupon #8
Bondsville Coupon 8
Properties
Modulus of Elasticity: 29330 ksi
Yield Strength: 33.0 ksi
Ultimate Strength: 47.74 ksi
Percent Elongation: 24.5%

Notes
Failure Picture
Failure Image Unavailable
