Technical Specifications

See System Dimensions, Speed, Weight and Features as well as Hardware and Software Block Diagrams.


System Specifications

Technical, Quantitive and Design Agnostic Details of MagiChess


3d Render of MagiChess with labelled dimensions


Maximum System Dimensions

  • Length : 33 inches (84cm)
  • Width : 30 inches (76 cm)
  • Height : 7 inches (18 cm)
  • Weight : 30 lbs (13 kg)

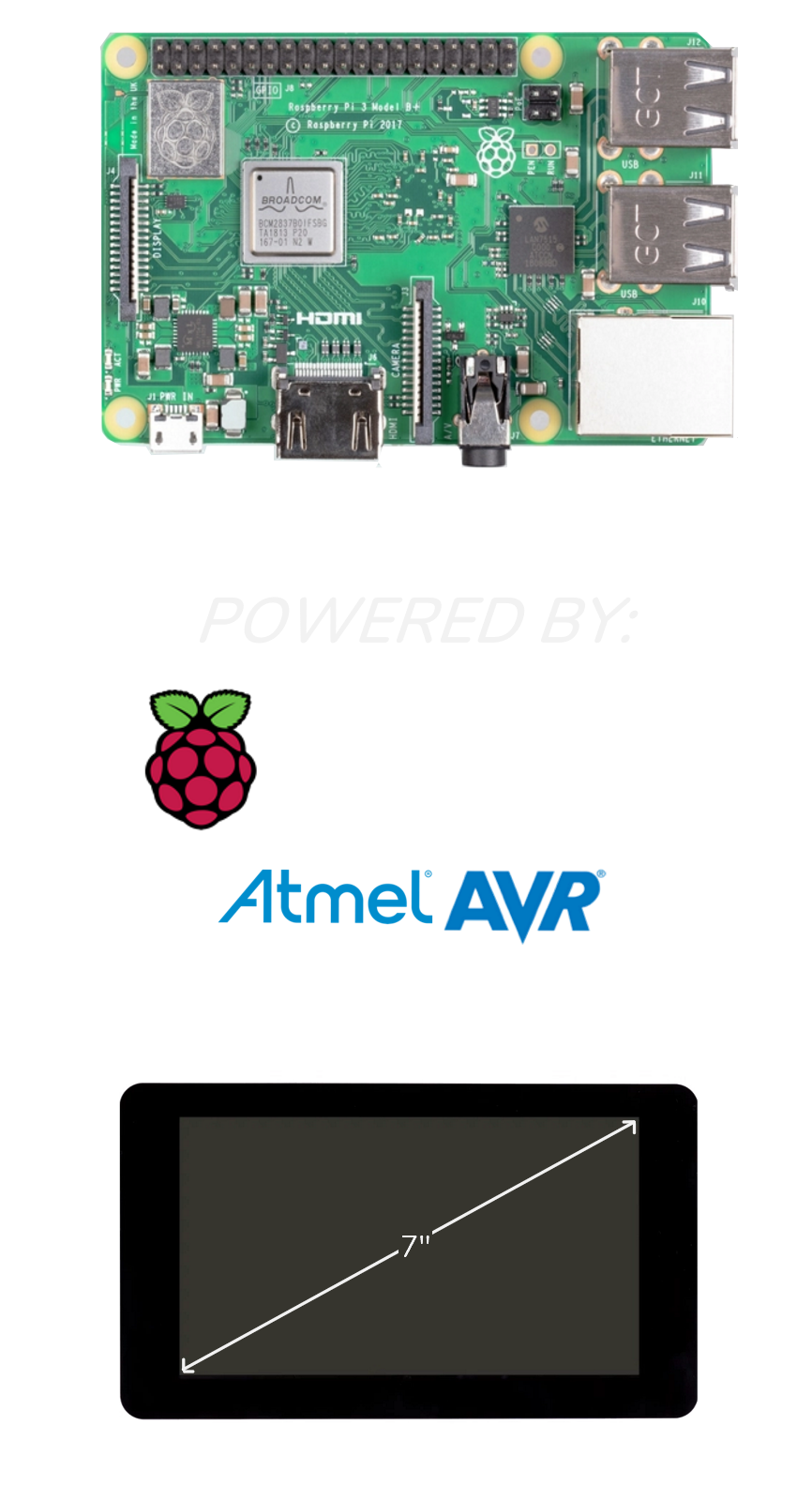

Image of Raspberry Pi Computer and 7 inch touch display. Powered by Raspberry Pi and Atmel AVR


User Interface

  • Mechanically move a piece to destination cell
  • Remove/replace a piece to/from game board
  • Provide visual feedback
      ⁃ Game setup, tutorial
      ⁃ Game announcements
      ⁃ Where pieces can move after picked up
  • Provide audio feedback
      ⁃ Notification Alerts
  • Play vs remote opponent
  • Playback previous games
  • Includes buffer zone to store captured pieces
  • Topple the King after checkmate

StepperOnline.com logo and LeadShine Stepper Logo


Mechanical Movements

  • Max Speed : 8 cm/s
  • Average move time : 7s
  • Maximum move time : 15s

Flowcharts

Hardware + Software Diagram

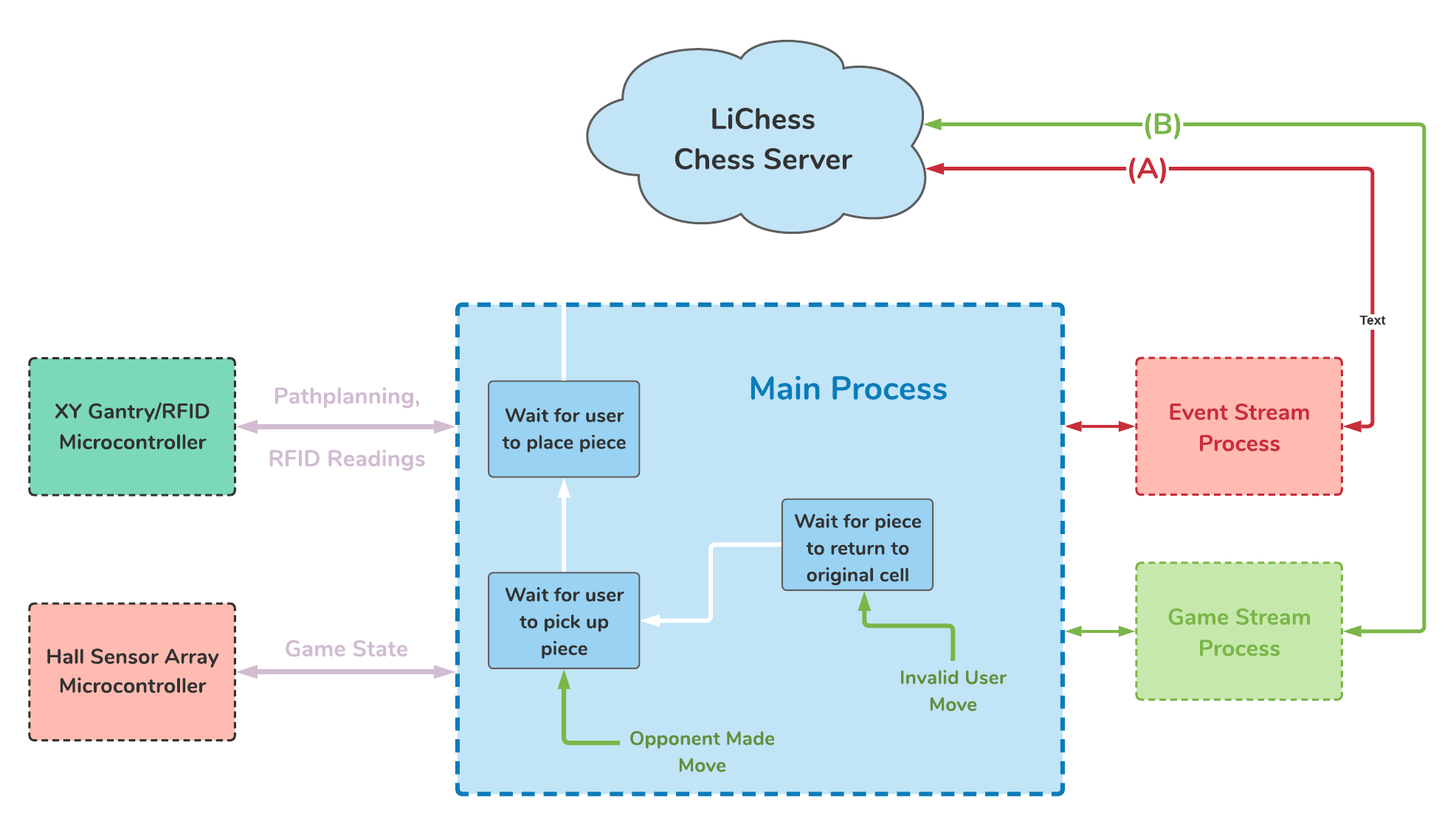

Hardware and Software flow diagram

Software Diagram

Software Flow Diagram
