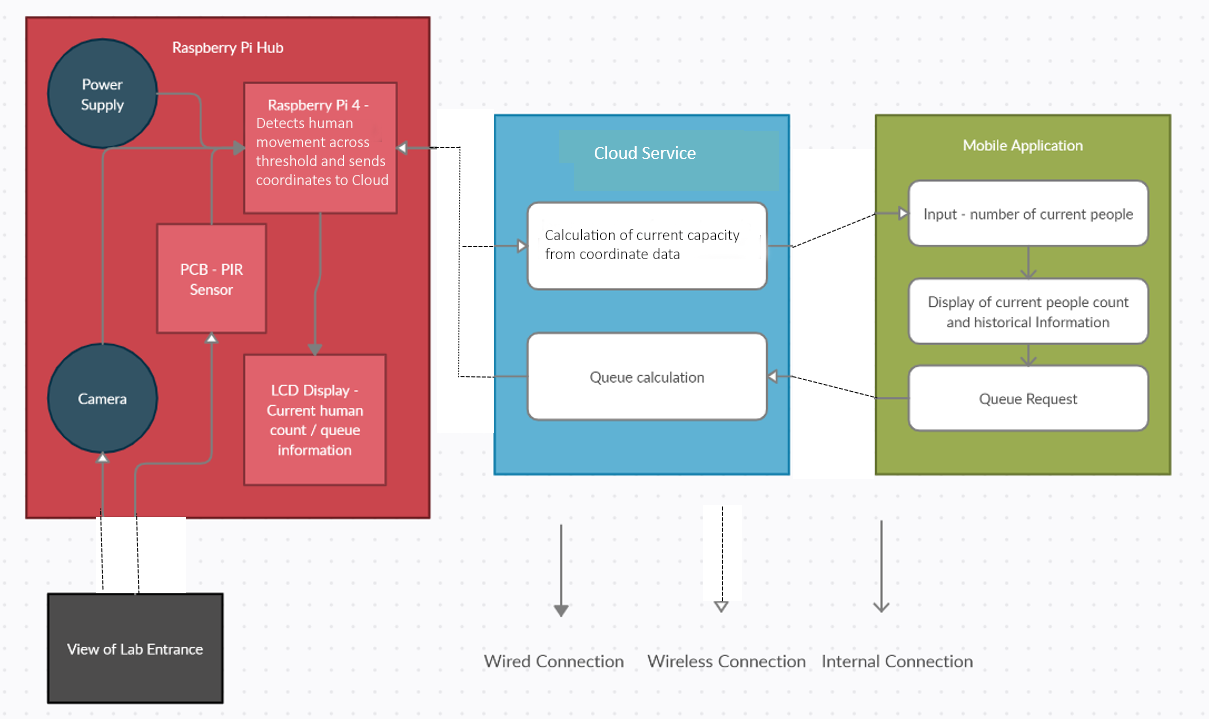

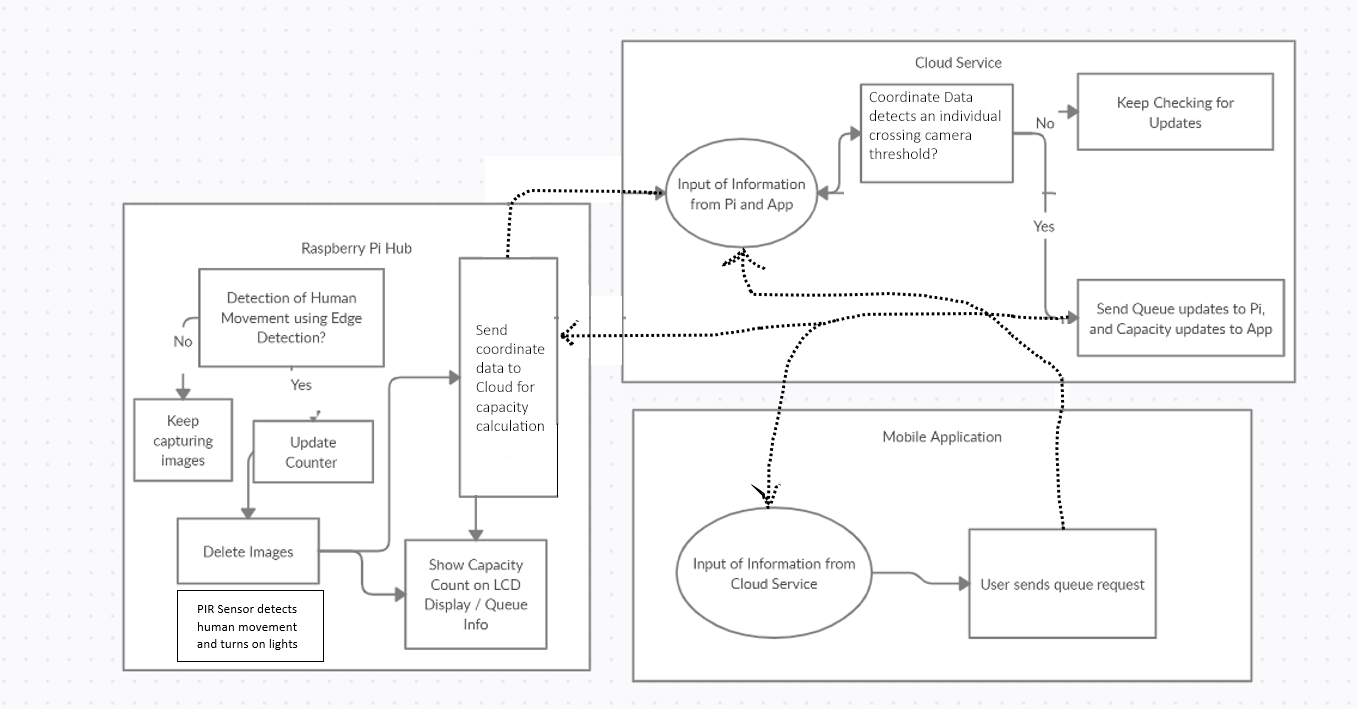

System Specs and Diagrams

System Specifications

1.The camera will always remain on
2. Camera feed will detect a person and send over x,y coordinates along with a timestamp to the Cloud
3. A display will indicate the Lab’s current vacancy outside the entrance and it will also show anyone who has booked a space in the lab
4. A PIR sensor will be used to turn on lights when it detects movement
5. Data will be sent from the cloud to a companion Android App. The queue and Lab bookings would be managed over the cloud.
6. Users will be able to book a seat in the Lab using the App.
7. The App will update in real time to show Lab vacancy
