Welcome to the Stomp Box Project
Presented By Team 27!
Problem Statement
Guitar players may wish to play more than one guitar part at a time when practicing certain songs by themselves. Most modern solutions for this desire averts significant amount of attention away from playing, or requires the use of another person to operate this hand operated device such as a sampler.
Our Solution
An entirely foot-controlled guitar sampler pedal which can store a recording of guitar to be recalled back upon for future use It will be able to plug into a pedal daisy chain with other commercial pedals on the market. It will also be able to recall the sample back either with no effect, or an effect layered on
Specifications
| 1. Can record and store up to 32GB of guitar audio on the SD card in .wav files. | 6. Features large stompbox switches to execute Rec/Stop, Memory Skip and Memory Play functions |
|---|---|
| 2. Sampling rate of 44.1kHz with 16-bit resolution | 7. LCD with SD card files info will readable from standing height |
| 3. True Bypass System | 8. The calculated power consumption will be 1.15 Watts |
| 4. The enclosure dimensions will be 8in width, 6in depth, 2in height. | 9. The device can be powered through wall power or through rechargeable NiMh batteries for approximately 4 hours of continuous use |
| 5. Removable SD card for external sample editing on one’s preferred editing software |

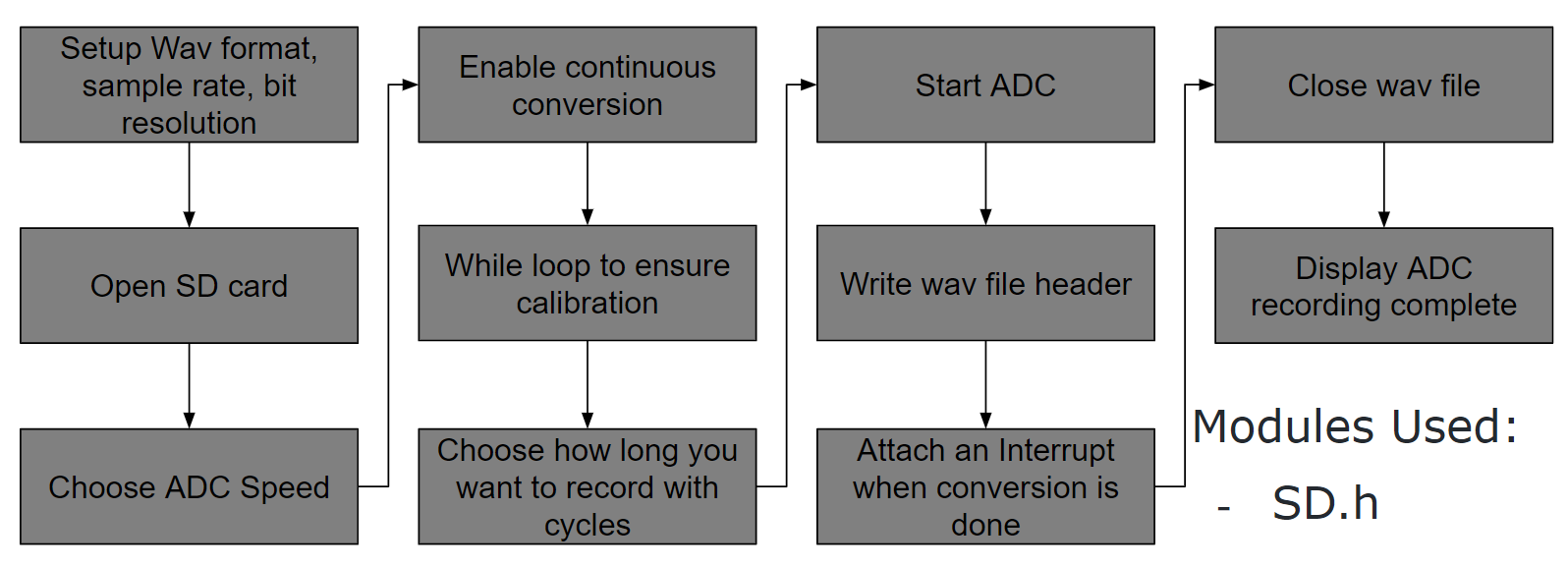

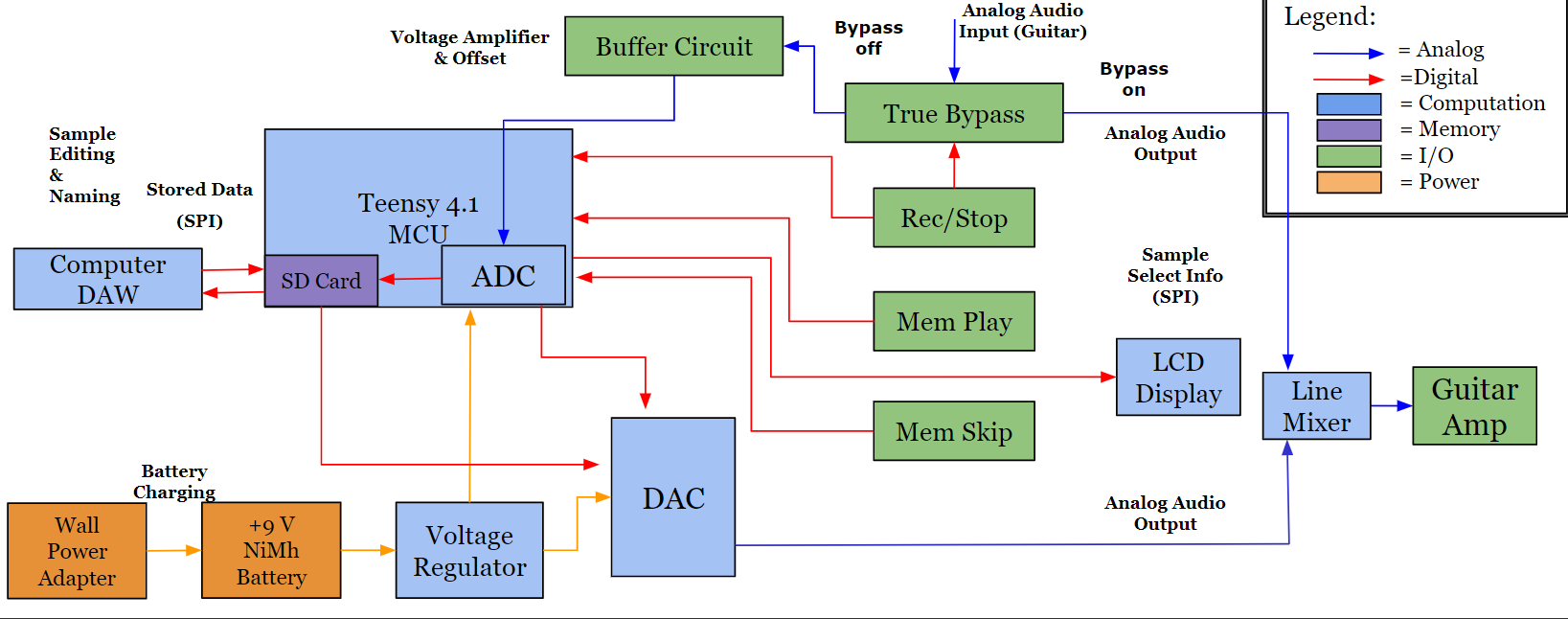

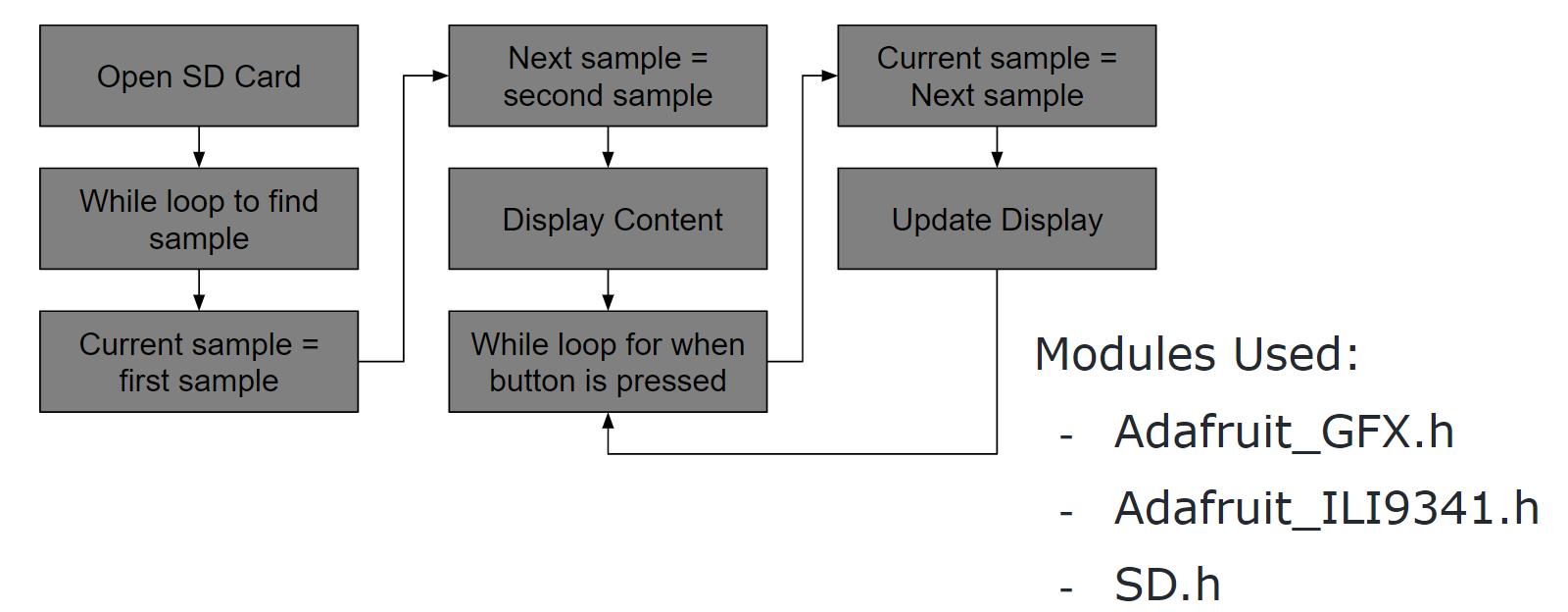

Block Diagrams & Components
Slide Decks

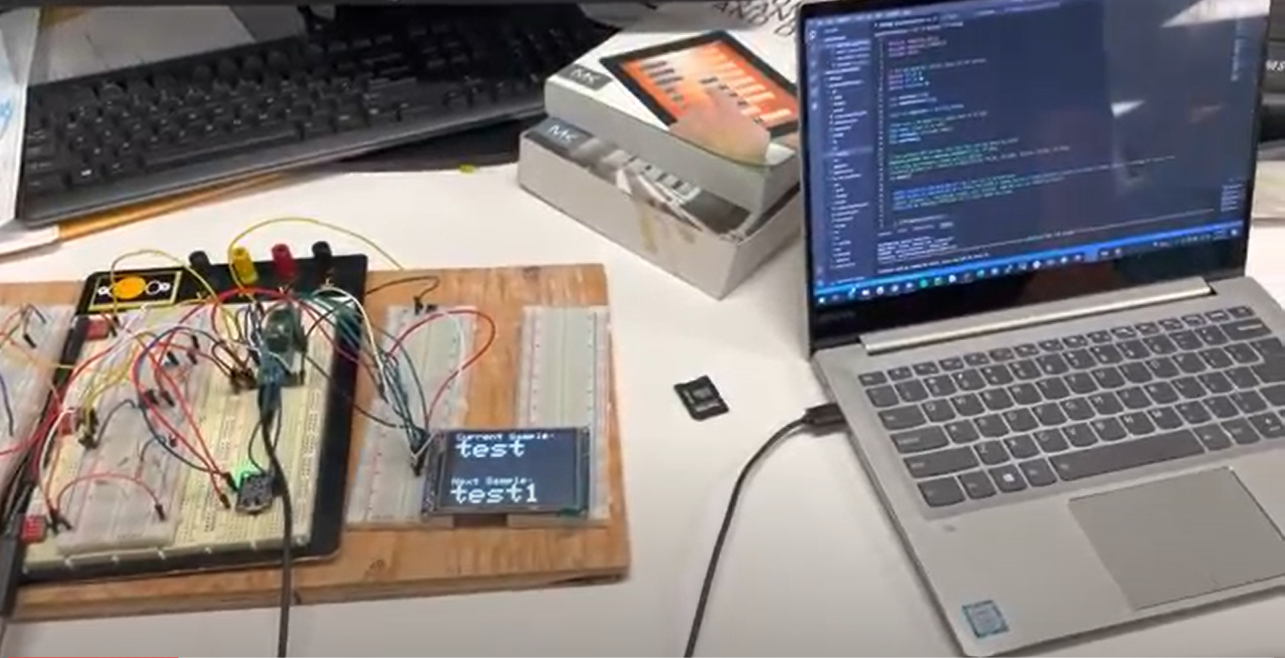

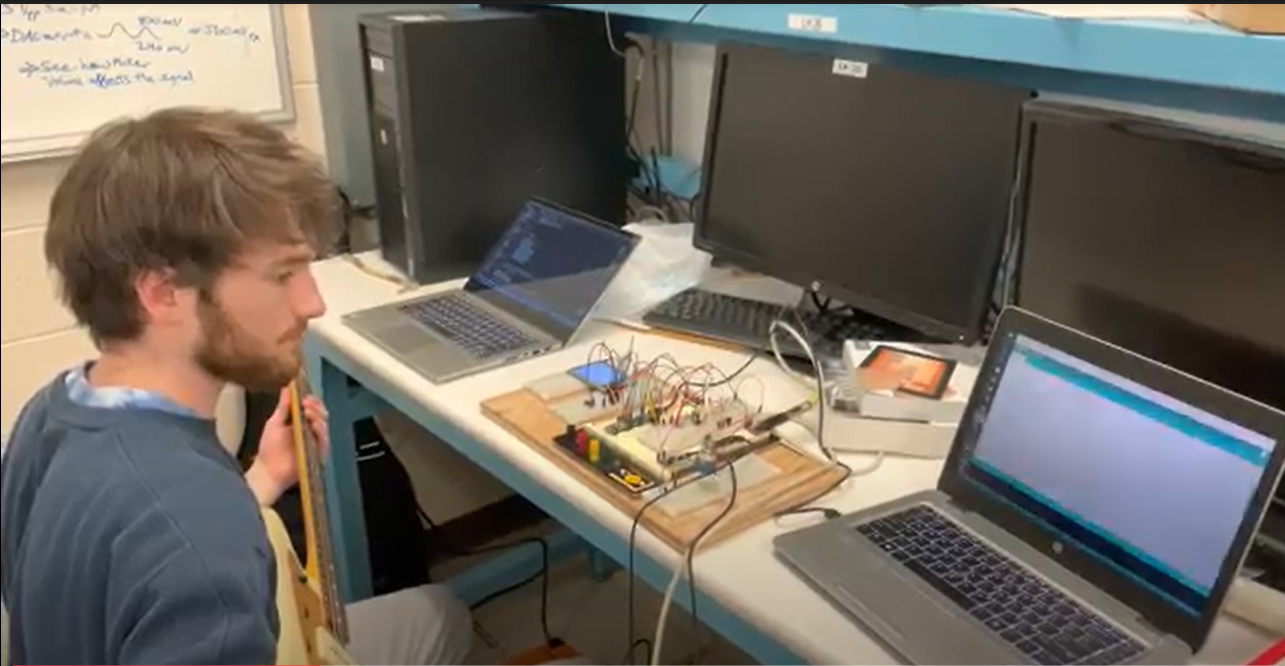

Demo Videos
Poster
