Why Motor Health Analysis?
Motors are an incredibly useful tool in a variety of applications. Thousands of real world systems hinge on these powerful devices. When it comes to diagnostics, these devices are mostly black boxes. Unless you are purchasing a very specific type of motor, generally the health of the motor is unknown. How can a user monitor the health of their motors, and thereby their systems, without compromising on the design of these systems?
Our Goal
Build a robust, modular device that can monitor the health of a motor (or motors), display device metrics in a easily-digestible user interface, and alert the user when the safety and longevity of the device has become compromised.
System Specifications
1. Accuracy:
-Sensor data is accurate within 5% of actual value
2. Latency:
-Less than 200 ms of delat on data display
-Less than 5 seconds of delay on user alert
3. Scalable:
-Sensing units must be modular
-Wireless communication
-User interface must be able to handle minimum 10 connections to sensing module
-Area must be less than 25 centimeters squared
4. Minimally invasive:
-Does not impede the system it attaches to
Hardware and Software Diagrams

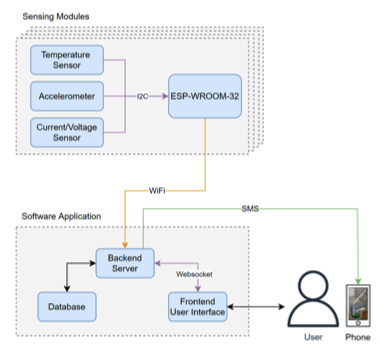

-Abstract system diagram

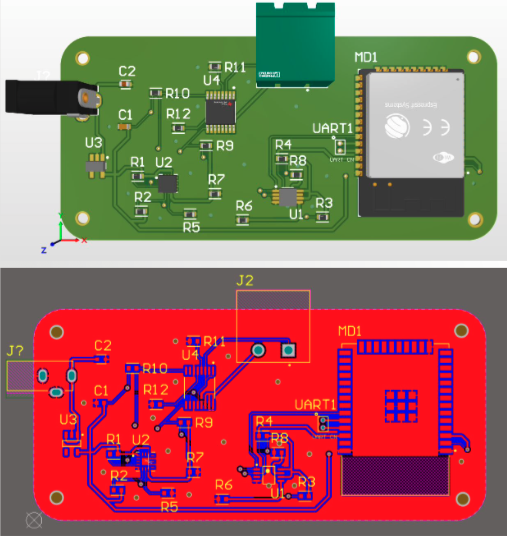

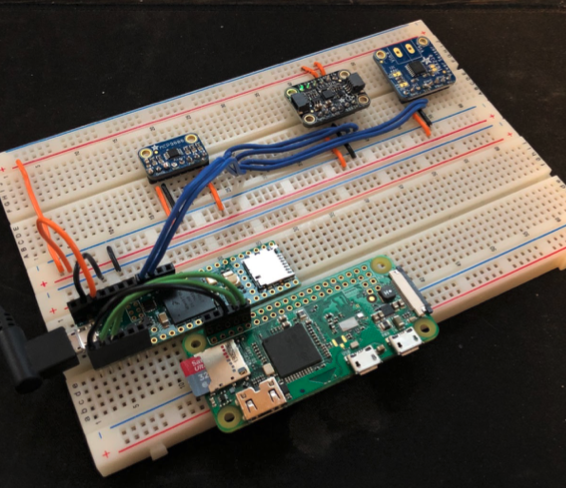

-Prototype 1 board

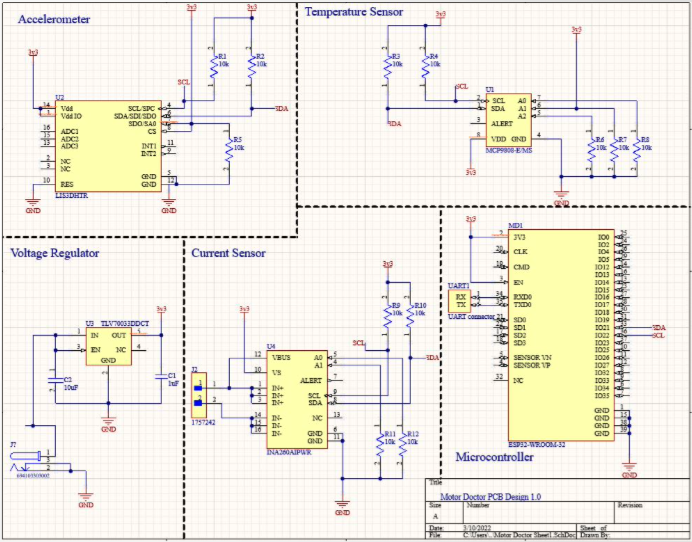

-Prototype 1 diagram

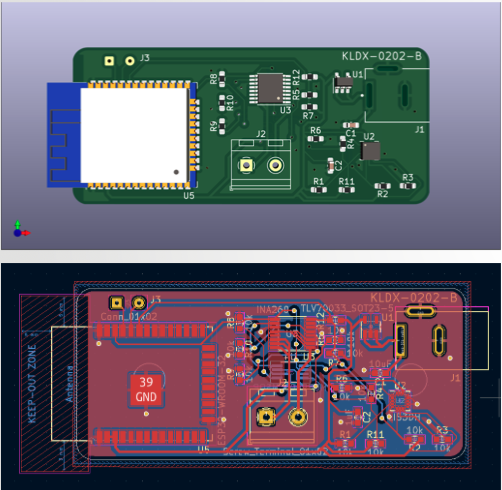

-Prototype 2 board

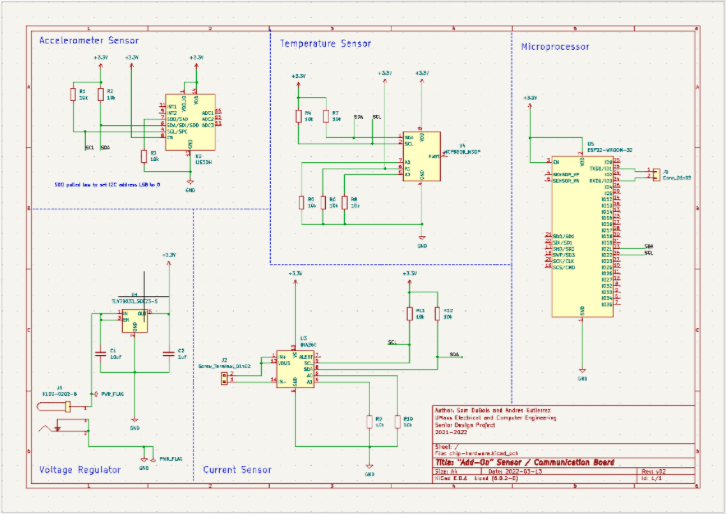

-Prototype 2 diagram

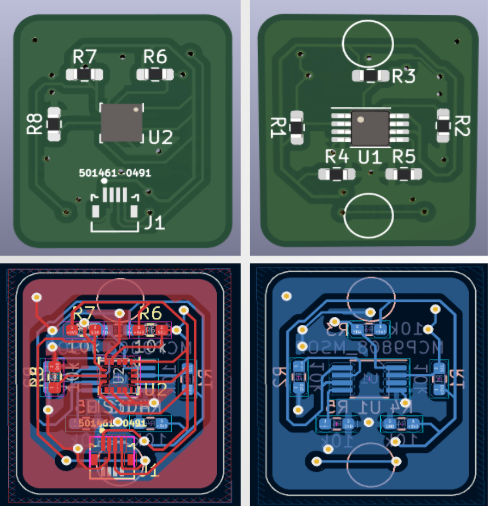

-Prototype 3 board

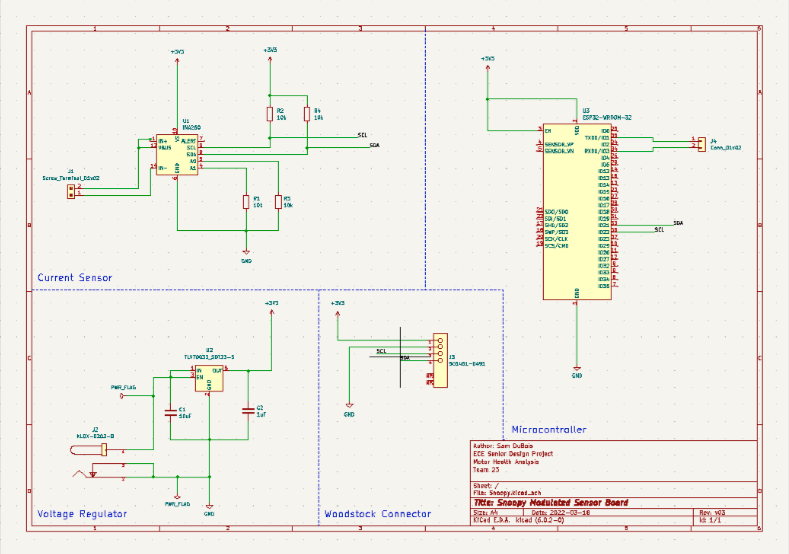

-Prototype 3 diagram
Hardware and Software Components

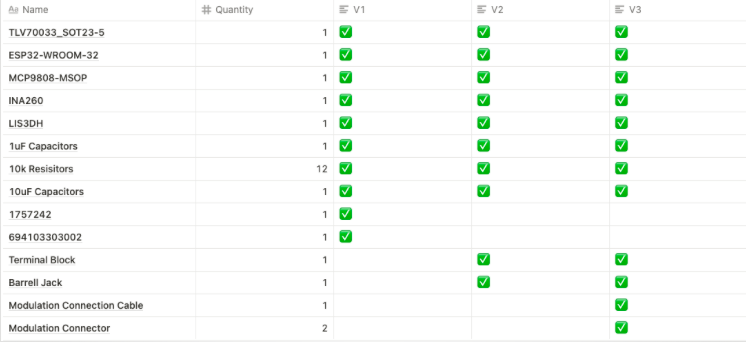

-Hardware list
-Software list
