Herb Chamber

Many people are thinking about becoming more self-sufficient and growing some of their own herbs at home but are stopped at the starting point due to many requirements they need to care for the plants. This is an Innovative turn on how automated home gardening. With Herb Chamber all one needs is simply put in the parameters for optimal plant growth and the n step back and what it do its thing. When its time to harvest it will notify you. Even without a green t humb, the Herb Chamber can monitor every factor that is needed to grow a garden successfully and take care of it for you, such as soil moisture, air temperature, ai r humidity, lighting duration and more. This allows you to cross the threshold without needing to do much work yourself.

Team 28 - Herb Chamber

Duoc Tran
Major: Computer Engineering

Nam Nguyen
Major: Computer Engineering

Christian SanBento
Major: Electrical Engineering

Simon Makenon
Major: Electrical Engineering

Advisor:
Prof. Siqueira

System Specification

Compact indoor form that fits on most tables
4 Soil Pouches

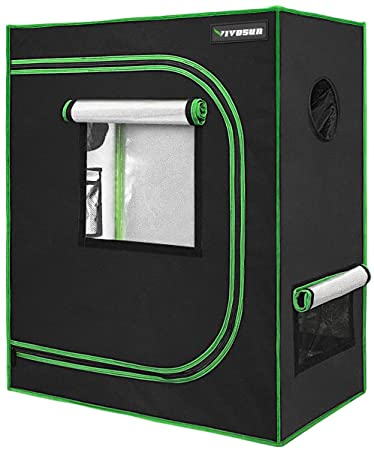

Compact tent enclosure 23” x 23” x 42”
Power supply
Low cost, low power system that delivers 105W/H
IP65 water and dust resistance rating
Water system
1x 12V DC pump with ½ inch tubing
6x 12V DC solenoid controlled watering channel with ½ inch tubing
Light System
Indoor grow light
Sensor System
humidity/temperature module
moisture sensor
Product app interface
Connected with a wifi module allowing remote access
Alarm notification when set harvest time is approaching
Displays various measured parameters
Emergency Shut Down

Herb Chamber

Team 28 - Herb Chamber

System Specification

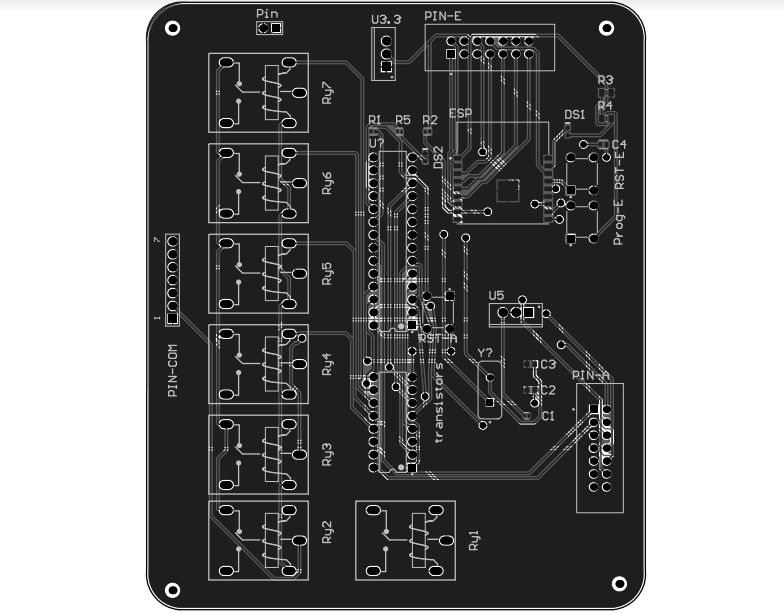

Download PCB Files:

Presentation Slides

FDR

Demo Videos
