Today, more and more people buy animals and treat them as thier friends, sovling lonely. However, adding food and water for a pet is always a trouble for their owners when they have to leave home for seveal days. Forgetting to add food and water may sickens pets, even causes the death of pets. Also, abnormal temperatures are also threat thier lives (forgetting close the window during the freezing winter). So here we demonstrate a smart pet cage which can add basic necessities for pets and monitor the environment temperature.
Automaticly Add Foods to the cage. Designed for long-tailed chinchilla, bunny and guinea pigs, which can add 2 type of food (hay and small particles). Masters can set the time and amount of food added for pets.
Automaticly Add Water to the cage. 2 Seprate water tanks design, prevent pollution.
Monitoring the environment temperature, remaining of food and water. Send notifications to users when abnormal temperature occurs, as well as low food or water storage.

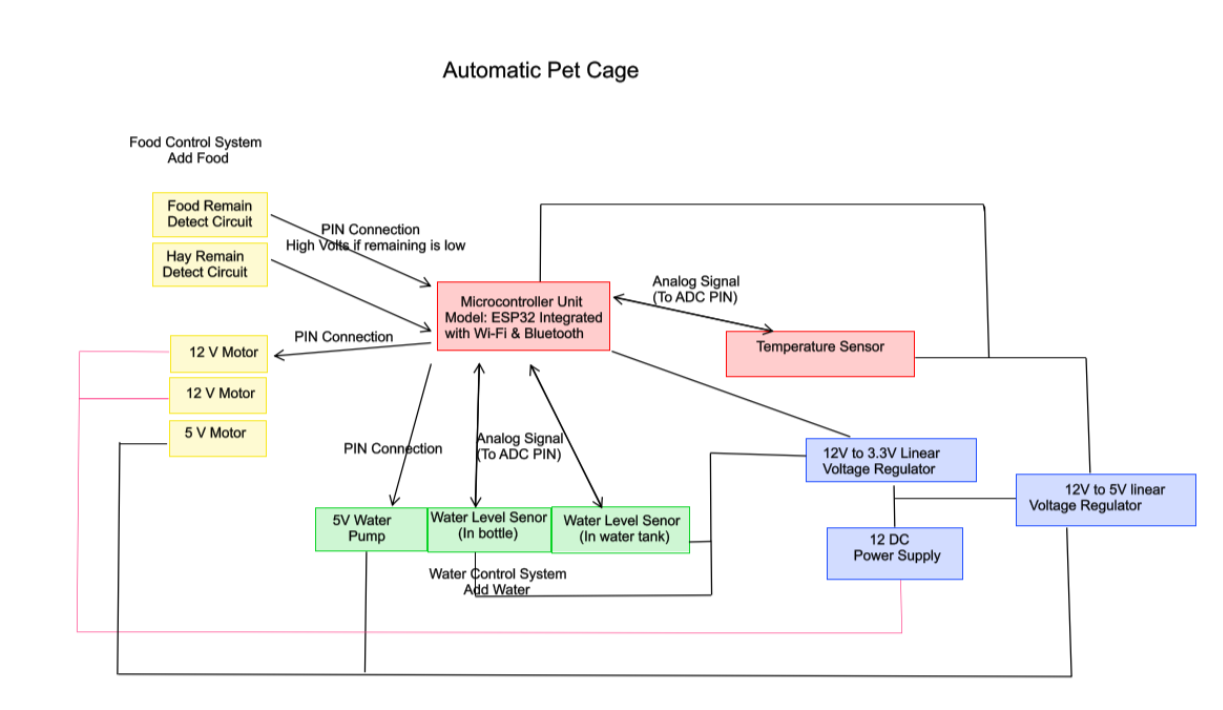

This project is based on ESP32 Micro-Controller Unit which allows Wi-Fi and Bluetooth connections. Project contains adding water system and adding food system.

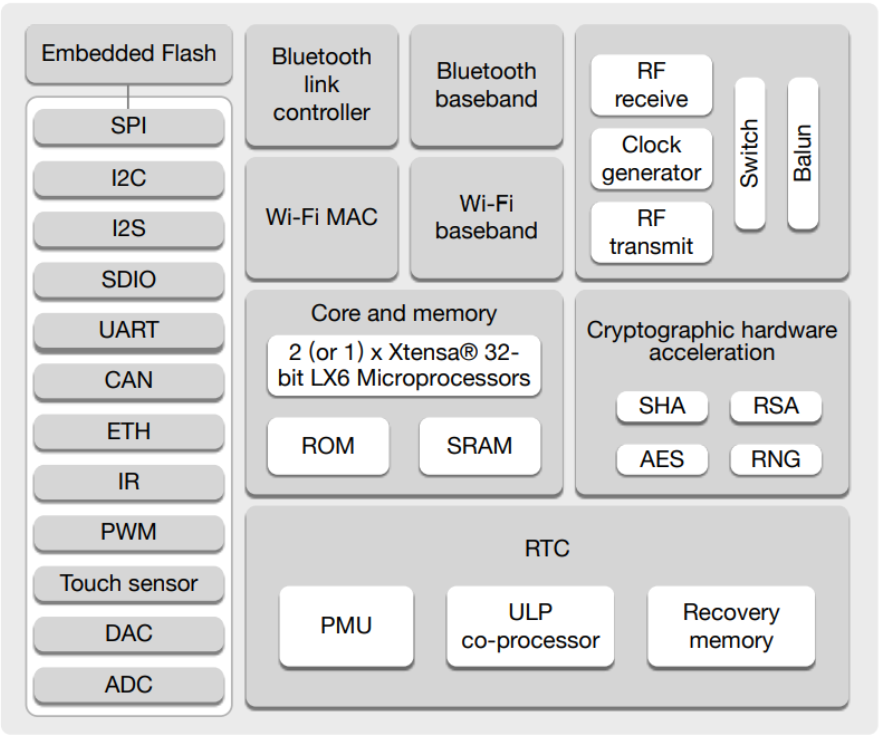

MCU contains 448KB ROM, 520kb SRAM, Wi-Fi and BLE Modulo. Flash memory large enough for basic data sotrage. AD Converter helps read the the data from sensors.
Learn more about ESP32

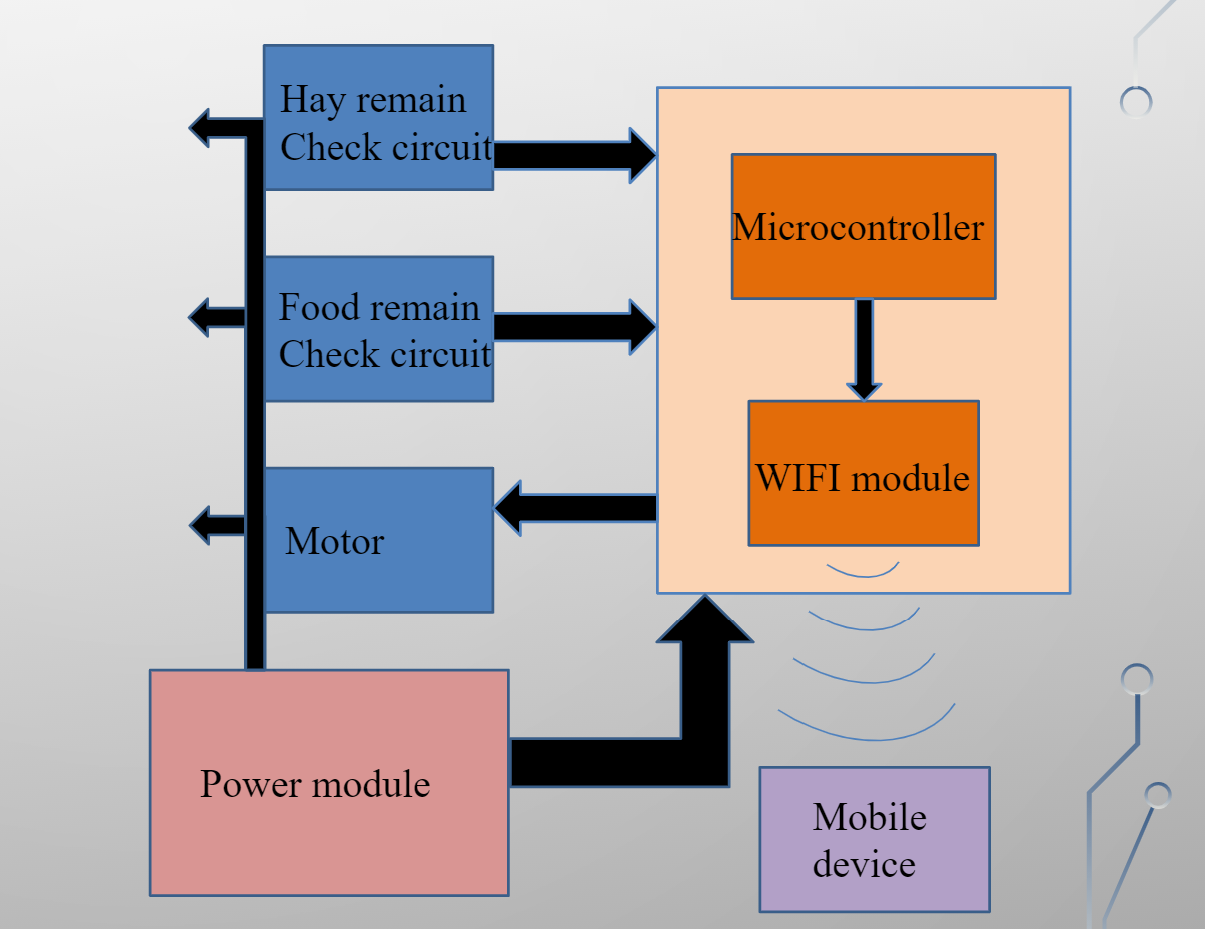

Hays and pet food can be added at a setting time and amount. Controlled by ESP32
See Document

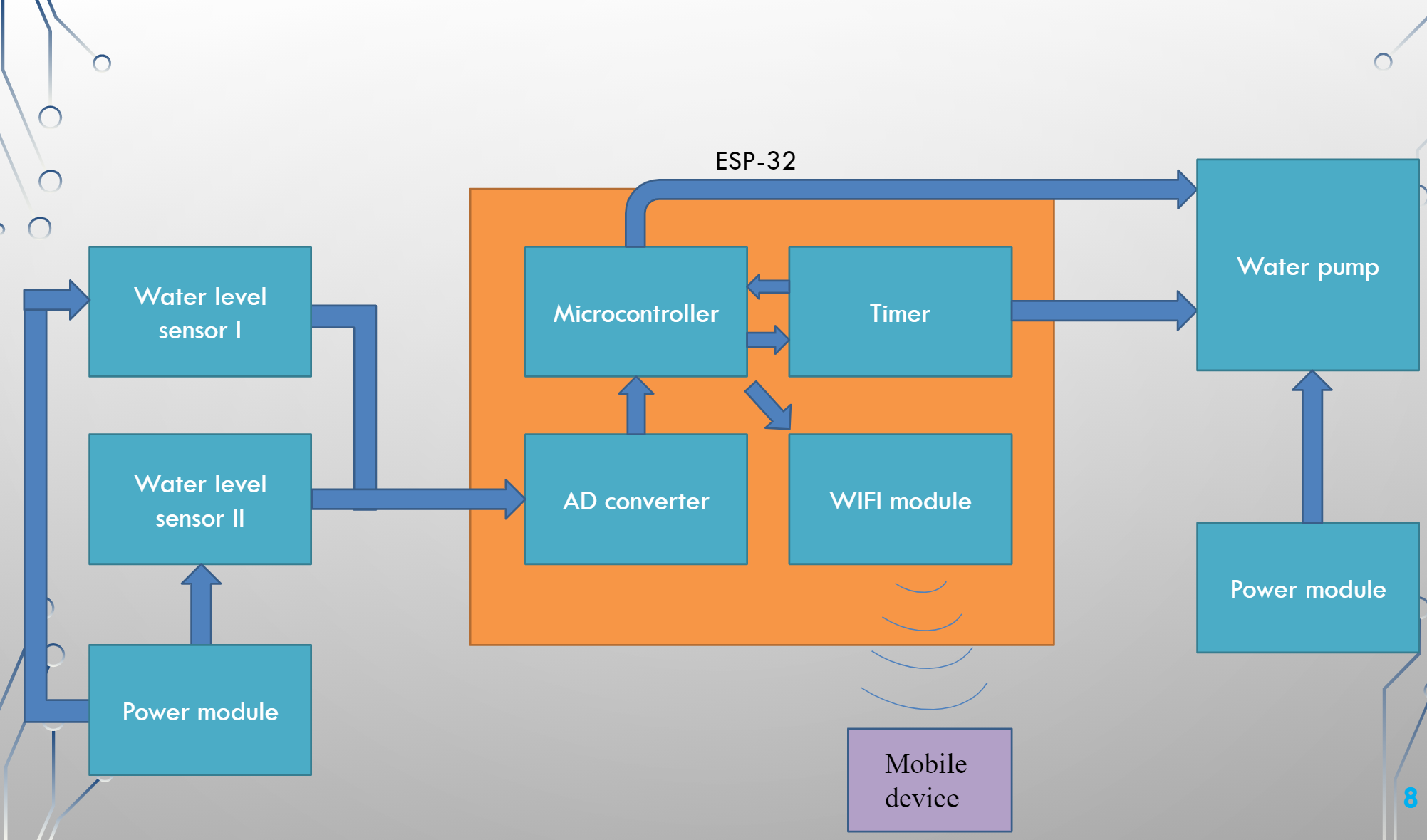

Add water anytime when the data from water-level sensors indicate low. Report data to ESP32.

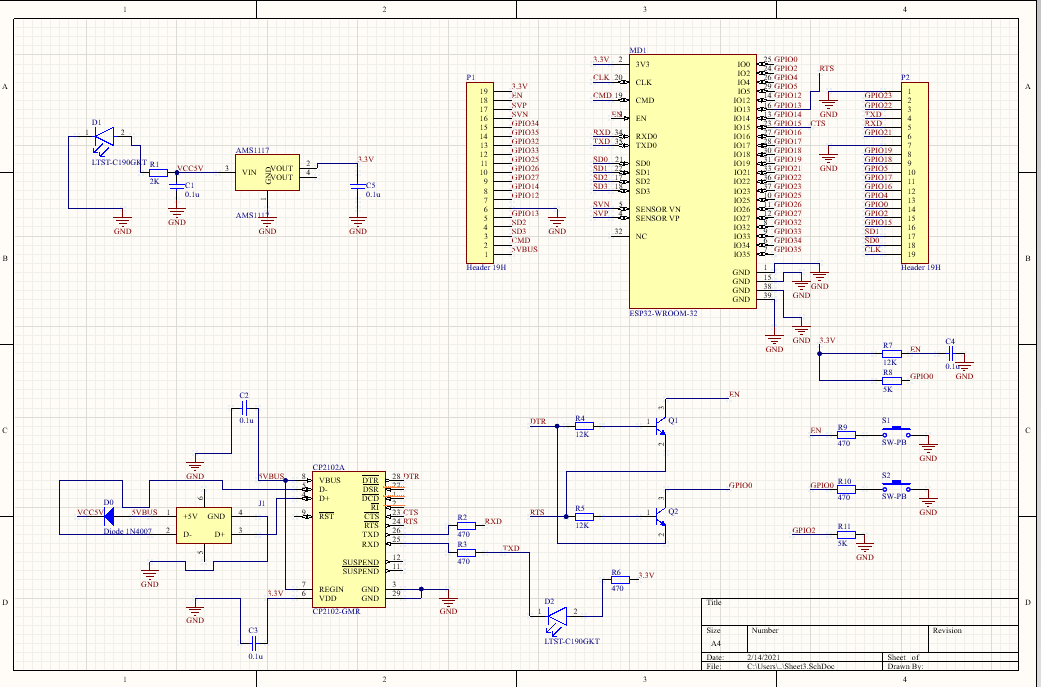

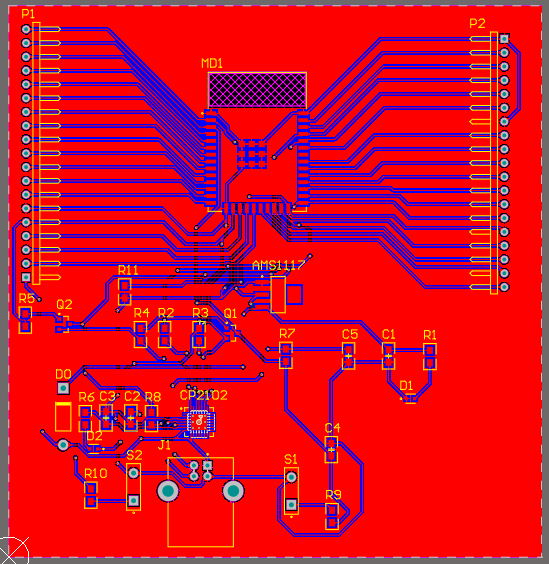

See DocumentThe key schematics of this project.
