Instruction of Cube Connected Cycle Network

The hypercube topology has multiple paths between nodes and a low overall diameter
of n for a network of 2n nodes. However, these are achieved at the price
of a high node degree. A node must have n ports, which implies that a new node
design is required whenever the size of the network increases. An alternative is
the Cube-Connected Cycles (CCC) which keeps the degree of a node fixed at three

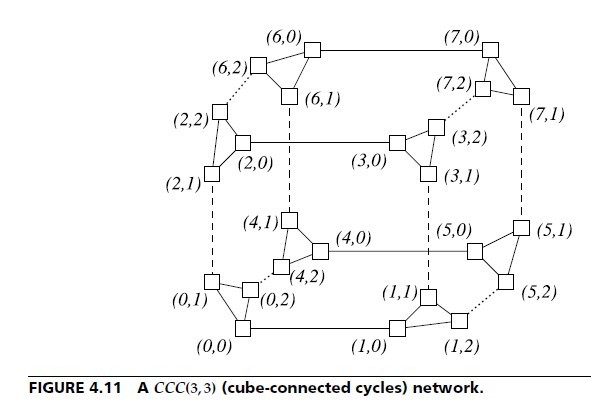

or less. A CCC network that corresponds to the H3 hypercube

Each node of degree three in H3 is replaced by a cycle consisting
of three nodes. In general, each node of degree n in the hypercube Hn is
replaced by a cycle containing n nodes where the degree of every node in the cycle
is 3. The resulting CCC(n,n) network has n2n nodes. In principle, each cycle may
include k nodes with k  n with the additional k . n nodes having a degree of 2.
This will yield a CCC(n, k) network with k2n nodes. The extra nodes of degree 2
have a very small impact on the properties that are of interest to us, and we will
therefore restrict ourselves to the case k = n.
The lower degree of nodes in the CCC compared to the hypercube results in a
bigger diameter. Instead of a diameter of size n for the hypercube, the diameter of
the CCC(n,n) is

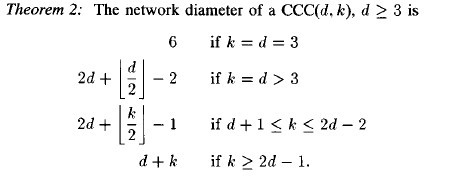

Dimeter of general CCC network

Pulpit rock
The routing of messages in the CCC is also more complicated than that in hypercubes.
The fault tolerance of the CCC is, however,
higher because the failure of a single node in the CCC will only have an effect similar
to that of a single faulty link in the hypercube. A closed form expression for
the reliability of the CCC has not yet been derived.

Reference:
Fault Tolerant Systems Israel Koren C. Mani Krishna
D. S. Meliksetian and C. Y. R. Chen, "Optimal Routing Algorithm and the Diameter of the Cube-
Connected Cycles," IEEE Transactions on Parallel and Distributed Systems, Vol. 4, pp. 1172ĘC1178,
October 1993.
