CEE 370



                                                              Name      _________________________________

Final Exam

December 21, 2006



Closed book, 3 sheets of notes allowed.

Show all work.  Be neat, and box-in your answer.

If you cannot finish a problem (e.g., due to lack of time, or a missing formula), explain on your exam paper how you would have completed it.



Answer:

·        Question #1 (20%)

·        Question #2 (15%)

·        one from the next three questions (#3 - # 5) (15%)

·        Question #6 (30%)

·        Question #7 (5%)

·        one from the last four questions #8 - #11 (15%)



total is 100%

**********************************************************************



Answer both of the first two questions #1 & #2





1.                  Stoichiometry (20 points)

Aerobic heterotrophic bacteria can facilitate the following unbalanced biochemical transformation of glucose:

                        C6H12O6 + O2 ®  CO2 + H2O

A.     Which element (and in which chemical species) is being oxidized in this reaction and what is its initial and final oxidation state?



The carbon in glucose is being oxidized to carbon in carbon dioxide.  The oxidation state goes from (0) to (+IV).



B.     Which element (and in which chemical species) is being reduced in this reaction and what is its initial and final oxidation state?



The oxygen in O2 is being reduced to the oxygen in water.  The oxidation state goes from (0) to (-II).



C.     Balance the glucose-oxygen reaction.



D.     Determine the Theoretical Oxygen Demand (ThOD) of a 25 mg/L solution of glucose.



The balanced stoichiometric equation is:

The ThOD is then:







2.                  Reactor Kinetics (15 points)

A.        A flow of 20 L/min of water is to be treated in a plug flow reactor (PFR).  What reactor volume (L) is needed to achieve 95% removal of a contaminant with a first order decay rate of 0.20 min-1?





B.        Calculate the volume needed if the water is to be treated for 95% removal in an ideal complete mix flow reactor (CMFR).



Answer one of the next three questions #3 - #5



3.                  Solid Waste (15 points)

A.        How much sawdust (total weight) must be added to a waste sludge to lower the moisture content to 60% so that it can be composted?  Assume you have 1000 kg of sludge (dry weight).  The sludge (as discarded) is 12% dry solids, 88% moisture, and the sawdust is 75% dry solids, 25% moisture.











B.        If the sludge were dewatered such that the total solids were 30% (rather than 12%) how much sawdust (total weight) would be needed for the same situation?







4.      Hazardous Waste (15 points)

Chlorine may be used to destroy cyanide ion (CN-) in industrial wastes, producing nitrogen gas and bicarbonate.  The chlorine is commonly added as sodium hypochlorite (NaOCl).  The reactions that occur are as follows:

And:



A.        If you had 100 kg of cyanide, how many kilograms of sodium hypochlorite would be needed?



First calculate the stoichiometry:  for every one mole of CN- converted to bicarbonate and nitrogen gas, you need 2.5 moles of sodium hypochlorite (1 to convert to CNCl and 3/2 to convert CNO- to N2 and HCO3-).  This means:





B.        How many moles of sodium hydroxide (NaOH) or hydrochloric acid (HCl) would also be needed to neutralize the reaction mixture if you started with 1 mole of cyanide and the requisite amount of sodium hypochlorite?





Again you need to calculate the stoichiometry:  for every one mole of CN- converted to bicarbonate and nitrogen gas, you need exactly zero moles of sodium hypochlorite.  This is because the first reaction produces two hydroxides and the second reaction consumes them.  The third reaction forms 3 H+ but also 3 OH-, again a wash.  This means the answer is:

Zero













5.      Air Pollution & Hazardous Waste, short answer (15 points)

A.        Describe at least two ways that particulate air contaminants can be removed from gaseous emissions.  Be as specific as possible.



n      Baghouse Filters

n      Ray: Figure 13.8, Masters: Fig. 7.33, M&D: Figure 11-28

n      heat-resistant porous fabric

n      cleaned by vibration

n      Electrostatic Precipitators (ESP)

n      Masters: Fig. 7.32, M&D: Fig 11-30 &31

n      use high voltage electric field; particles are ionized (by negative plate) and collected on the positive plate

n      Cyclones









B.        Describe how acidic gases can be removed from incinerator waste gases.  Include a diagram with your description.







By washing with water containing a base such as “caustic” or NaOH







C.        Describe two in-situ cleanup methods for site remediation of soil contaminated with hazardous wastes.

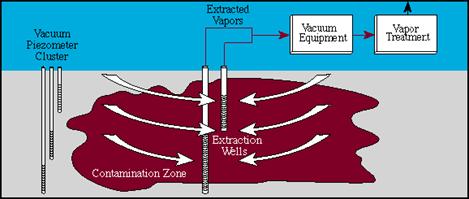

Vacuum Extraction

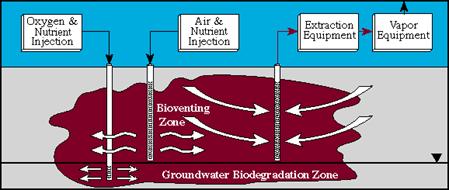

Bioventing











D.        Describe the characteristics of a hazardous waste, and how a waste might be defined as "hazardous" under the law.



n      Ignitability

n      Corrosivity

n      pH 2 and below; or pH 12.5 and above

n      corrodes steel 0.25 in/y at 55 C

n      Reactivity

n      reacts violently with or without water

n      generates toxic gases

n      Toxicity

n      Toxicity Characteristic Leaching Potential (TCLP) and toxicity characteristics













Answer questions #6 and #7



6.      Water Quality Modeling (30 points)

The Intercontinental Paper Co. is discharging its wastewater directly into the Mill River.  The discharge flow is 3.8 ft3/s (cfs) the discharge D.O. is 5.5 mg/L and the discharge ultimate BOD (BODult) is 35 mg/L.  They obtain half of this water from an intake 0.5 miles upstream of the wastewater outfall, and half from groundwater via a nearby well field.  On average, the Mill River water upstream of the IPC outfall has an ultimate BOD (BODult) of 2.5 mg/L and a D.O. of 8.5 mg/L.  If the Mill River has a flow of 12 cfs upstream of the IPC intake, and if the state permits a minimum DO of 7.5 mg/L in the Mill River, will the state have to further restrict the BOD in IPC's wastewater (i.e., is the stream out of compliance)?  Calculate the minimum stream D.O. expected as a result of the IPC discharge.



Additional assumptions:           BOD deoxygenation rate: k1(or kd) = 0.23 d-1

                                               reaeration rate constant (k2 or kr) of 0.82 d-1

                                               D.O saturation concentration = 9.5 mg/L

                                               River flow velocity = 0.5 ft/s




Answer:



Perform a mass balance at the outfall



Qupstream = 12-0.5*(3.8) = 10.1 cfs

BODupstream = 2.5 mg/L

DOupstream = 8.5 mg/L



QWW = 3.8 cfs

BODww = 35 mg/L

DOww = 5.5 mg/L



And immediately after the point of mixing:

Qoutfall = 10.1 cfs + 3.8 cfs = 13.9 cfs

BODoutfall = ((2.5 mg/L * 10.1 cfs) + (35 mg/L * 3.8 cfs))/13.9 cfs = 11.38 mg/L

DOoutfall = ((8.5 mg/L * 10.1 cfs) + (5.5 mg/L * 3.8 cfs))/13.9 cfs = 7.68 mg/L

Doutfall = 9.5 mg/L – 7.68 mg/L = 1.82 mg/L









And now:



The minimum DO is slightly below the 7.5 mg/L standard, so the state will have to further restrict BOD discharges.













7.      BOD (5 points)

If the ultimate BOD of a wastewater is 350 mg/L and the kL is 0.25 d-1, what is the BOD5 ?

















Answer one of the following four questions #8 - #11



8.      Chemical Oxidation  (15 points)

The oxidation of ferrous iron (Fe+2) by oxygen occurs in readily in water forming ferric hydroxide precipitate (Fe(OH)3(s)):

A. Write the two half cell reactions and balance each of them.



Oxidation half reaction:

Reduction half reaction:





B. Write the overall balanced reaction



Overall Reaction:



C. How much oxygen (in mg/L) is required to oxidize 1.5 mg/L of ferrous iron and how much ferric hydroxide precipitate is formed?



First the oxygen requirement:

And now the hydroxide sludge:









9.      Groundwater Flow (15 points)

The flow velocity (Darcy velocity) of water between two wells spaced 100 m apart has been documented at 0.003 m/day during a long dry period.  During this time, the water surface elevation in the two wells was 335.93 m and 335.49 m.  During periods of heavy recharge, the water levels rise to 342.85 m and 340.79 m respectively.  What is the Darcy velocity between these wells under the heavy recharge period?



First calculate the hydraulic conductivity based on the dry period data





Then apply that to the recharge period











10. Biological Growth Kinetics (15 points)

You have been studying the performance of a CMFR biological reactor.  Your wastewater supports a specific bacterial growth rate of 0.25 d-1.  Under these conditions, the effluent substrate (waste) concentration is 0.4 mg/L.  When you increase your wastewater strength such that the final substrate concentration leaving the CMFR is doubled to 0.8 mg/L, you observe a specific growth rate of 0.35 d-1.  From these data estimate the two Monod coefficients, Ks and mmax.





Initial case:



High-strength case:



Solve the two equations for the two unknowns.  Rearrange the first equation:



And substitute in to the 2nd equation



Now take the above equation and solve for umax:











11. Reactor Kinetics (15 points)

You have a wastewater flow rate of 1000 L/hr.  To treat this wastewater you have constructed a concrete tank of 100,000 liters.  The wastewater contains the deadly compound, 2-methyl-3-chloro-4-anisole sulfonate (MCAS).  Kinetic studies have shown the MCAS to degrade by a 1st order reaction with a half-life of 40 hours.

a.      What is the % removal of MCAS if the reactor is operated as a plug flow reaction (PRF)?





Thus the % removal is 100-18 = 82%







b.      What is the % removal of MCAS if the reactor is operated as a completely mixed flow reactor (CMFR)?





Thus the % removal is 100-37 = 63%


Appendix

Some physical constants of Water:

Temp., oC

Density, kg/m3

Viscosity,

N-s/m2

Kinematic Viscosity, m2/s

0

999.8

1.781x10-3

1.785x10-6

5

1000.0

1.518 x10-3

1.519x10-6

10

999.7

1.307 x10-3

1.306 x10-6

15

999.1

1.139 x10-3

1.139 x10-6

20

998.2

1.002 x10-3

1.003 x10-6

25

997.0

0.890 x10-3

0.893 x10-6

30

995.7

0.798 x10-3

0.800 x10-6

35

994.0

0.725 x10-3

0.729 x10-6

40

992.2

0.653 x10-3

0.658 x10-6





Selected Chemical Constants

Element

Symbol

Atomic #

Atomic Wt.

Valence

Electronegativity

Aluminum

Al

13

 26.98

3

1.47

Boron

B

 5

 10.81

3

2.01

Calcium

Ca

20

 40.08

2

1.04

Carbon

C

 6

 12.01

2,4

2.50

Cerium

Ce

58

140.12

3,4

1.06

Chlorine

Cl

17

35.453

1



Holmiuum

Ho

67

164.93

3

1.10

Hydrogen

H

 1

  1.01

1

2.20

Iron

Fe

26

55.85

2,3



Magnesium

Mg

12

 24.31

2

1.23

Manganese

Mn

25

 54.94

2,3,4,6,7

1.60

Nitrogen

N

7

14.0067

3



Osmium

Os

76

190.2

2,3,4,8

1.52

Oxygen

O

 8

16.00

2

3.50

Potassium

K

19

 39.10

1

0.91

Sodium

Na

11

 22.99

1

1.01

Sulfur

S

16

 32.06

2,4,6

2.44







Useful conversion factors





1 ft  =  0.305 m
