CEE 370 |
November 16, 2006 |
Closed Book, two sheets of notes allowed
Please answer any combination of the following 9 questions such that the total potential is 100%. Show all work. Be neat, and box-in your answer.
1. |
|
PFRs are
always more efficient that CMFRs for 1st order processes |
2. |
|
Chemoheterotrophs
use inorganic chemicals for energy |
3. |
|
Primary
producers include all of the higher animals |
4. |
|
Fick’s
first law describes advective flow |
5. |
|
The NOAEL
is the dose level that causes 100% mortality |
6. |
|
Darcy’s law
describes flow in porous media |
7. |
|
Evapotranspiration
is the process by which water moves from groundwater to a river |
8. |
|
Rotifers
are a form of algae |
9. |
|
Protozoa
can exist in a cyst form |
10. |
|
Most nitrogenous
BOD is in the form of ammonia or organic amines |
A. A 5-day BOD test was conducted at standard temperature (20 °C) on a treated wastewater. To run this test, the analyst used 40 mL of wastewater and 260 mL of dilution water. The initial and final (5 day) DO levels in the 300 mL BOD bottle were 8.0 mg/L and 4.0 mg/L respectively. What is the BOD5 of the (undiluted) treated wastewater (7 points)?
B. If both the first-order BOD bottle constant (k or kb) and the deoxygenation rate constant (kd or k1) at 20 °C are 0.38 day-1, what is the ultimate BOD of the treated wastewater (7 points)?
C. Assuming that the same concentration and characteristics of carbonaceous oxygen demanding waste is in the treated wastewater throughout the year, what is the BOD concentration (L) in the river in the winter at a downstream travel time of two days (13 points)?
D. What is the initial dissolved oxygen deficit in the river at the point of mixing in the summer (6 points)?
E. In the summer the stream velocity is 0.2 m/s. How far downstream (in m) does the minimum dissolved oxygen concentration occur in the summer? What is the value of the minimum dissolved oxygen concentration (17 points)?
a. What is the steady state phosphorous concentration (in mg/L) leaving the lake if there are no inputs of P other than the inflow stream?
b. If the maximum desirable in lake phosphorous concentration is 0.015 mg/L, what is the maximum allowable rate of phosphorous input (S, in g/s) due to other sources such as direct runoff?
c. What fundamental chemistry principle is the basis for the “limiting nutrient” concept in water quality?
d. If the nitrogen concentration in the lake is 0.18 mg/L as N, would the increased P loading in part “b” above lead to increased algal growth in the lake? Prove your answer quantitatively.
A. The first WWTP discharges 0.5 m3/s of flow with an ultimate BOD (BODult or L) of 45 mg/L. The BOD bottle rate constant (kb or k) is 0.4375 d-1. The dissolved oxygen of this waste flow is 1.5 mg/L. Calculate the BOD and dissolved oxygen level at a point 5 km downstream (which is immediately upstream of the second WWTP discharge (25 points).
B. The second WWTP discharges 5 km downstream of the first one. Its wastewater flow is 0.3 m3/s and it has an ultimate BOD (BODult or L) of 55 mg/L. As with the first wastewater discharge, the BOD bottle rate constant (kb or k) is 0.4375 d-1. The dissolved oxygen of this waste flow is 0.5 mg/L. Calculate the BOD and dissolved oxygen level at a point 5 km downstream of the second WWTP discharge (i.e., 10 km downstream of the first discharge) (25 points).
Some
additional useful information:
O’Connor Dobbins equation:
Where: kr (the reaeration coefficient; same as k2 or ka) is in d-1, u (velocity) is in m/s and h (depth) is in m.
Selected Chemical Constants
Element |
Symbol |
Atomic # |
Atomic Wt. |
|
Electronegativity |
|
Aluminum |
Al |
13 |
26.98 |
3 |
1.47 |
|
Boron |
B |
5 |
10.81 |
3 |
2.01 |
|
Calcium |
Ca |
20 |
40.08 |
2 |
1.04 |
|
Carbon |
C |
6 |
12.01 |
2,4 |
2.50 |
|
Cerium |
Ce |
58 |
140.12 |
3,4 |
1.06 |
|
Helium |
He |
2 |
4.00 |
0 |
|
|
Holmiuum |
Ho |
67 |
164.93 |
3 |
1.10 |
|
Hydrogen |
H |
1 |
1.01 |
1 |
2.20 |
|
Magnesium |
Mg |
12 |
24.31 |
2 |
1.23 |
|
Manganese |
Mn |
25 |
54.94 |
2,3,4,6,7 |
1.60 |
|
Osmium |
Os |
76 |
190.2 |
2,3,4,8 |
1.52 |
|
Oxygen |
O |
8 |
16.00 |
2 |
3.50 |
|
Potassium |
K |
19 |
39.10 |
1 |
0.91 |
|
Sodium |
Na |
11 |
22.99 |
1 |
1.01 |
|
Sulfur |
S |
16 |
32.06 |
2,4,6 |
2.44 |
|
Selected Acidity Constants (Aqueous Solution, 25°C, I = 0)
NAME |
FORMULA |
pKa |
|
Hydrochloric acid |
HCl = H+ + Cl- |
-3 |
|
Sulfuric acid |
H2SO4=
H+ + HSO4- |
-3 |
|
Nitric acid |
HNO3 = H+ +
NO3- |
-0 |
|
Bisulfate ion |
HSO4-
= H+ + SO4-2 |
2 |
|
Phosphoric acid |
H3PO4 =
H+ + H2PO4- |
2.15 |
|
Hydrofluoric acid |
HF = H+ + F- |
3.2 |
|
Nitrous acid |
HNO2 = H+ + NO2- |
4.5 |
|
Acetic acid |
CH3COOH = H+ + CH3COO- |
4.75 |
|
Propionic acid |
C2H5COOH
= H+ + C2H5COO- |
4.87 |
|
Carbonic acid |
H2CO3 =
H+ + HCO3- |
6.35 |
|
Hydrogen sulfide |
H2S = H+ + HS- |
7.02 |
|
Dihydrogen phosphate |
H2PO4-
= H+ + HPO4-2 |
7.2 |
|
Hypochlorous acid |
HOCl = H+ + OCl- |
7.5 |
|
Ammonium ion |
NH4+
= H+ + NH3 |
9.24 |
|
Hydrocyanic acid |
HCN = H+ + CN- |
9.3 |
|
Phenol |
C6H5OH
= H+ + C6H5O- |
9.9 |
|
Bicarbonate ion |
HCO3-
= H+ + CO3-2 |
10.33 |
|
Monohydrogen phosphate |
HPO4-2 = H+ + PO4-3 |
12.3 |
|
Bisulfide ion |
HS- = H+ + S-2 |
13.9 |
|
Temperature °C |
DO saturation (Cs) in mg/L |
0 |
14.62 |
1 |
14.23 |
2 |
13.84 |
3 |
13.48 |
4 |
13.13 |
5 |
12.80 |
6 |
12.48 |
7 |
12.17 |
8 |
11.87 |
9 |
11.59 |
10 |
11.33 |
11 |
11.08 |
12 |
10.83 |
13 |
10.60 |
14 |
10.37 |
15 |
10.15 |
16 |
9.95 |
17 |
9.74 |
18 |
9.54 |
19 |
9.35 |
20 |
9.17 |
21 |
8.99 |
22 |
8.83 |
23 |
8.68 |
24 |
8.53 |
25 |
8.38 |
26 |
8.22 |
27 |
8.07 |
28 |
7.92 |
29 |
7.77 |
30 |
7.63 |
31 |
7.51 |
32 |
7.42 |
33 |
7.28 |
34 |
7.17 |
35 |
7.07 |
36 |
6.96 |
37 |
6.86 |
38 |
6.75 |
Use a θ (theta) of 1.135 for adjusting deoxygenation coefficients
Conversion factors: 1 gal = 3.7854x10-3 m3, 1 ft = 0.3048 m

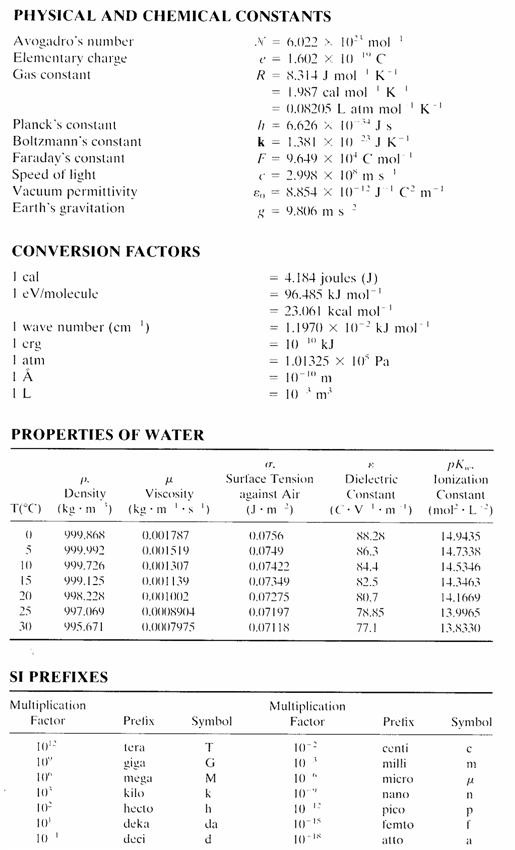

Other Constants of interest:
